Product Center

FYSF mechanical small feeder

  • Product Description

1. Tooth row type feeding structure, effectively avoid the situation of minushing material.
2. Using pulse data control, accurate positioning, the cutting end of the first piece can be controlled within 0.2mm.
3.PLC plus servo motor, large touch screen, digital control, accurate positioning, convenient and simple.
4. Electrical and mechanical fault intelligent diagnosis, maintenance is simple and fast.
5. Material out or cutter damage, intelligent alarm and automatic shutdown, to ensure safety, and reduce energy and tool loss.
6. For different products, you can choose one opening clip, two opening clip, you can accurately control the same position for material change.
7. According to customer order requirements, the processing quantity can be set to facilitate production management.
8. When the clip falls off or there is no material, the alarm is immediately reported and the machine is shut down, effectively preventing the stranding material and avoiding material and tool damage.
9. Material delivery is not in place or beyond, will immediately alarm and stop, strictly control the occurrence of defective products.



Item

FYSF-06

FYSF-08

Processing capacity range

Maximum diameter of material processed

φ4mm

φ7mm

Minimum diameter of material processing

φ0.8mm

φ1.2mm

Bar processing length

2550mm

Bunker activity range

φ6.0mm

φ8.0mm

synthesis

Material capacity

20pcs

20pcs

Maximum power

0.465kW

Maximum frequency

50HZ

Total machine weight

About 180KG

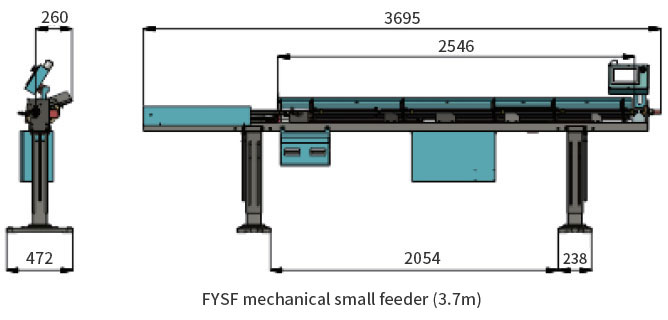

Overall dimension
