FYST mechanical sectioning machine

  • Product Description

1. It can easily transport round rods, hexagons, plastics, shaped materials and small materials above φ1.4mm.
2. Using pulse data control, accurate positioning, the cutting end of the first piece can be controlled within 0.2mm.
3. Adopt 40 point PLC plus servo motor, large touch screen, digital control, accurate positioning, convenient and simple.
4. The silo is made of high-temperature, wear-resistant and oil-resistant PU material, which makes no noise in material transmission and avoids scratches.
5. Using motor control, divided into three sections to open the warehouse, for small bar material, effectively avoid material rushed out or stranded material.
6. Intelligent fault diagnosis of electrical appliances and machine city, simple and fast maintenance.
7. Material out or cutter damage, intelligent alarm and automatic shutdown, to ensure safety, and reduce energy and tool loss.
8. For different products, you can choose one opening clip, two opening clip, you can accurately control the same position for material change.
9. According to customer order requirements, the processing quantity can be set to facilitate production management.
10. When the clip falls off or there is no material, the alarm is immediately reported and the machine is shut down, effectively preventing the stranding material and avoiding material and tool damage.
11. Material delivery is not in place or beyond, will immediately alarm and stop, strictly control the occurrence of defective products.


Item

FYST-08

FYST-10

Processing capacity range

Maximum diameter of material processed

φ8mm

φ10mm

Minimum diameter of material processing

φ1.4mm

φ2mm

Bar processing length

2550mm

Bunker activity range

φ9mm

φ11mm

synthesis

Material capacity

φ1.4mm*140pcs

φ8mm*25pcs

φ2mm*100pcs

φ10mm*20pcs

Maximum power

0.465KW

Maximum frequency

50HZ

Total machine weight

About 180KG

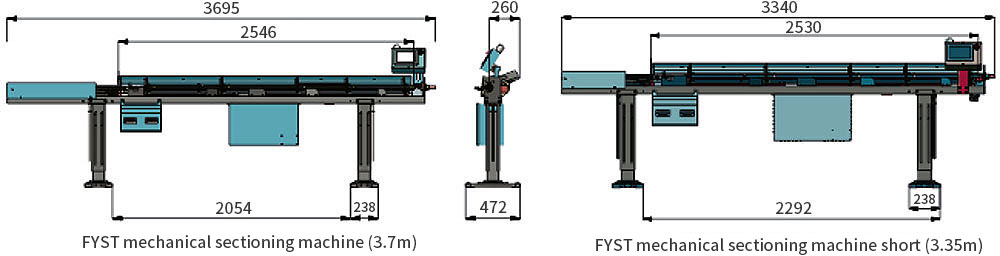

Overall dimension
